Features
  • Multi-function DSP loudspeaker management system (single 19” rack unit) featuring the iMode Technology to control external amps and passive sound reinforcement systems
  • 2-IN/4-OUT Analogue and Digital (AES3) configurable matrix
  • 2 GPI – General Purpose Input, 2 GPO – General Purpose Output configuration settings on a DB9 connector (with +5V and GND) that allows third party integration of alarm/fire systems, power control, mute, and fault notification to an external monitoring system
  • Extremely advanced WFIR (Warped Frequency FIR) filtering technology, which is based on the same principle as the human ear, distributing the frequency resolution over a semi-logarithmic scale
  • Raised Cosine modelling for parametric, shelving and band pass filters for each input stage
  • Ethernet Switch with 2 Ethernet Ports
  • IIR Filters on each output stage
  • Delay of up to several seconds
  • Twin compressor-limiters on each output channel, with advanced knee control
  • Group facilities possible, based on synthesis of transfer functions
  • Control by iOS Native App and MacOSX Native App
  • Control via web Browser (Java Applet) for compatibility with several Operating Systems
  • Advanced control of Presets with file sharing functions
  • Constantly updated Preset Library for Outline systems (downloadable from the Outline Web site)
  • Two independent sound generators for each input channel
  • Via iOS, advanced FFT functions with real-time spectrogram to facilitate filter settings
  • Featuring the highest audio resolution presently available
  • iP24 “runs” on a Linux operating system, with relative advantages in terms of stability and operation (fundamental in important IT applications, such as military and hospitals)

Applications

Ideal for both permanent and live sound reinforcement applications.

Its format of two inputs and four outputs, all available in both analogue and digital (AES3) versions, makes for easy integration in both new and retrofit applications.

Multi-market integration applications, thanks to an RS485 interface, to control older equipment, as well as GPIO ports, which can be programmed as required.

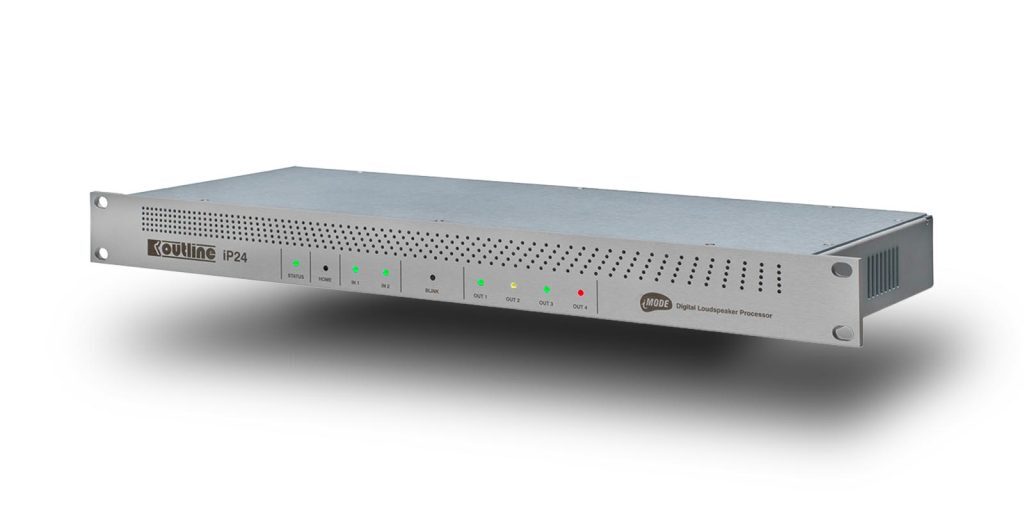

In a major advancement of Outline’s proprietary iMode Processing Platform, the iP24 is a multi-purpose 2-input/4-output DSP loudspeaker controller housed in a single 19” rack space. For the first time, it provides all the features associated with the iMode platform, now able to control external amplifiers and passive sound reinforcement systems.

The iP24 uniquely features WFIR (Warped Frequency Finite Impulse Response) filtering technology, based on the same principle as human hearing. WFIR filtering – not found in other loudspeaker control systems due to the limited amount of DSP they provide – distributes the frequency resolution over a semi-logarithmic scale and produces a more natural auditory response.

Outline iP24 ensures really superior precision. The tools provided by iMode technology to control sound systems’ response include modern Raised Cosine filters. Compared to traditionally implemented parametric functions, they provide better transfer curve shaping, controlling intervention frequency bandwidth more precisely while maintaining minimum-phase response.

All onboard audio I/O can operate in either analogue or digital, and connection via standard Ethernet protocol allows total system control via PC web browser, as well as iPhone / iPad and Mac OS X. The 2 Inputs/4 Outputs can be configured in a number of ways depending on the application requirements. Inputs and outputs can run as either analogue or digital (AES3).

Learn more about iMode technology at outlineimode.com

FREQUENCY RESPONSE 20 Hz – 20 kHz (± 0.5 dB)
INPUTS 2 x analog electronically balanced
1 x digital AES3
OUTPUTS 4 x analog electronically balanced
2 x digital AES3
INPUT SENSITIVITY +10 dBu, +20 dBu remotely selectable
SAMPLE RATE 96 kHz
THD + N 147.5 dB SPL
NOISE OUTPUT LEVEL -95.5 dBu (unweighted)
COMMUNICATION Ethernet standard (TCP/IP)
CONNECTORS 2 x analog input XLR
4 x analog output XLR
1 x AES3 input XLR
2 x AES3 output XLR
2 x ethernet port 1 x DB9 general input / output port
1 x RS485 port
FINISH Anodized aluminum steel chassis
WEIGHT 1.6 kg – 3.5 lb
DIMENSIONS (H x W x D) 44 mm x 483 mm x 175 mm
1 – 3/4” x 19” x 6 – 7/8”
(1 U standard EIA)
