Features
  • High efficiency high-power sub
  • Exceptional size-to-power ratio
  • Deep, very clean low frequencies
  • Long-excursion woofers fitted with demodulating rings in order to handle peak power values that exceed the loudspeakers’ electrical power capacity
  • Cabinet internally braced to ensure maximum solidity and prevent coloration due internal resonances.
  • Extremely compact cabinet (can be easily tucked under bench seating)
  • Flying points (M8 thread)
  • Very low weight



Applications

  • High quality installations in houses of worship, clubs, lounge bars, Live music-venues, theatres, conference rooms, stores, and shopping centres.
  • Also suitable for high quality mobile applications, industrial and corporate rental companies.

Description

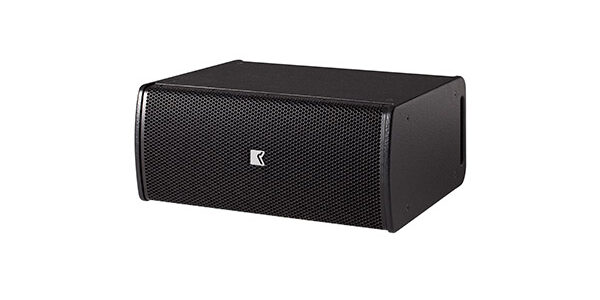

EIDOS 108S has been designed for venues where low frequencies are needed but discrete placement is required. The compact nature of this cabinet allows installation within the tightest of places. Based on a dual-port band-pass design and utilising a single 8″ drive-unit the EIDOS 108S can faithfully reproduce the lower frequencies down to 38Hz and up to a peak SPL of 118 dB.

All Eidos subwoofers can accurately reproduce the bottom end of the audio spectrum, and are sufficiently dynamic to reproduce all types of music. Performance is very high thanks to the selection and design of the correct components, but also to the careful choice and optimisation of the loading techniques that different enclosures require.

The cabinets are built in sturdy phenolic glued 15 mm Baltic birch plywood, that is resistant to damp, even in outdoor applications. Inside, the cabinets bracing as well as the long tuning ports which act as additional rigidity stiffens the panels to avoid vibration. the external finish is in high quality scratch-resistant black paint. The front of the cabinet is protected by an anti-resonant steel grille covered with sound-transparent foam. There are a number of M8 flying points, enabling EIDOS subwoofers to be easily fitted with flying hardware.

Technical specifications

PERFORMANCE SPECIFICATIONS

Frequency Response (-10 dB) 36 Hz – 160 Hz
Suggested Cross-Over max 100 Hz
Nominal Dispersion Quasi-Omnidirectional
Impedance (Nom/Min) 4 Ω / 4 Ω
Watt AES (Continuous/Peak) 200 W / 800 W
Maximum SPL Output * 129 dB SPL
* calculated using +10 dB Crest Factor signal @ 1 m, half space

PHYSICAL

Component 1 x 8″ woofer, dual port band pass system
Connectors 1 x NL4 Pins 1+/1-, 4-pin Phoenix
Cabinet Material Baltic birch plywood
Cabinet Finish Black polyurea coating
Grill Epoxy powder coated
Installation Points 16 x M8 threaded points
Pole Mount N/A
Height 250 mm – 9 7/8″
Width 550 mm – 21 5/8″
Depth 500 mm – 19 5/8″
Weight 20.5 kg – 45.2 lb
